Angiographic Catheters
RADIFOCUS™ Optitorque™
Angiographic Catheter
- Single catheter concept decreases procedure and fluoroscopy times, providing both procedural and cost-efficiency.1,2,3
- Designed for good torque control and high flow.
Please contact your local representative for product details and catalogs.
Overview
A full line of angiographic catheters designed for easy manipulation
- Single catheter concept decreases procedure and fluoroscopy times, providing both procedural and cost-efficiency.1,2,3
- Designed for good torque control and high flow.
Product Details
Designed for good torque control and high flow
Designed for good torque control, high flow, coaxial engagement and less vessel trauma
Full range of shapes designed for coaxial engagement
A complete portfolio for cardiology procedures, including universal radial shapes, enabling angiography of right and left coronary arteries using a radial approach.
Benefit of being dedicated catheters for a radial approach
Single catheter concept decreases procedure and fluoroscopy times, providing both procedural and cost efficiency.1,2,3
Variety of dedicated catheters for a transradial approach
Depending on patients’ anatomy or preference
History of the development of transradial catheters
Videos
Item Specifications
Country Select
| Formulation No./ Model No. | Shape Image | Category | Tip shape/Tip figure | Outer diameter（Fr.） | Outer diameter (mm) | Inner diameter(mm) | Usable catheter length (cm) | Side holes |
|---|---|---|---|---|---|---|---|---|
| RH*4MP2520M |  |
Cardiology | Multipurpose Curve 2.5 | 4 | 1.40 | 1.03 | 100 | 2 |
| RH*5AL1000M |
|
Cardiology | Amplatz Left 1.0 | 5 | 1.70 | 1.20 | 100 | 0 |

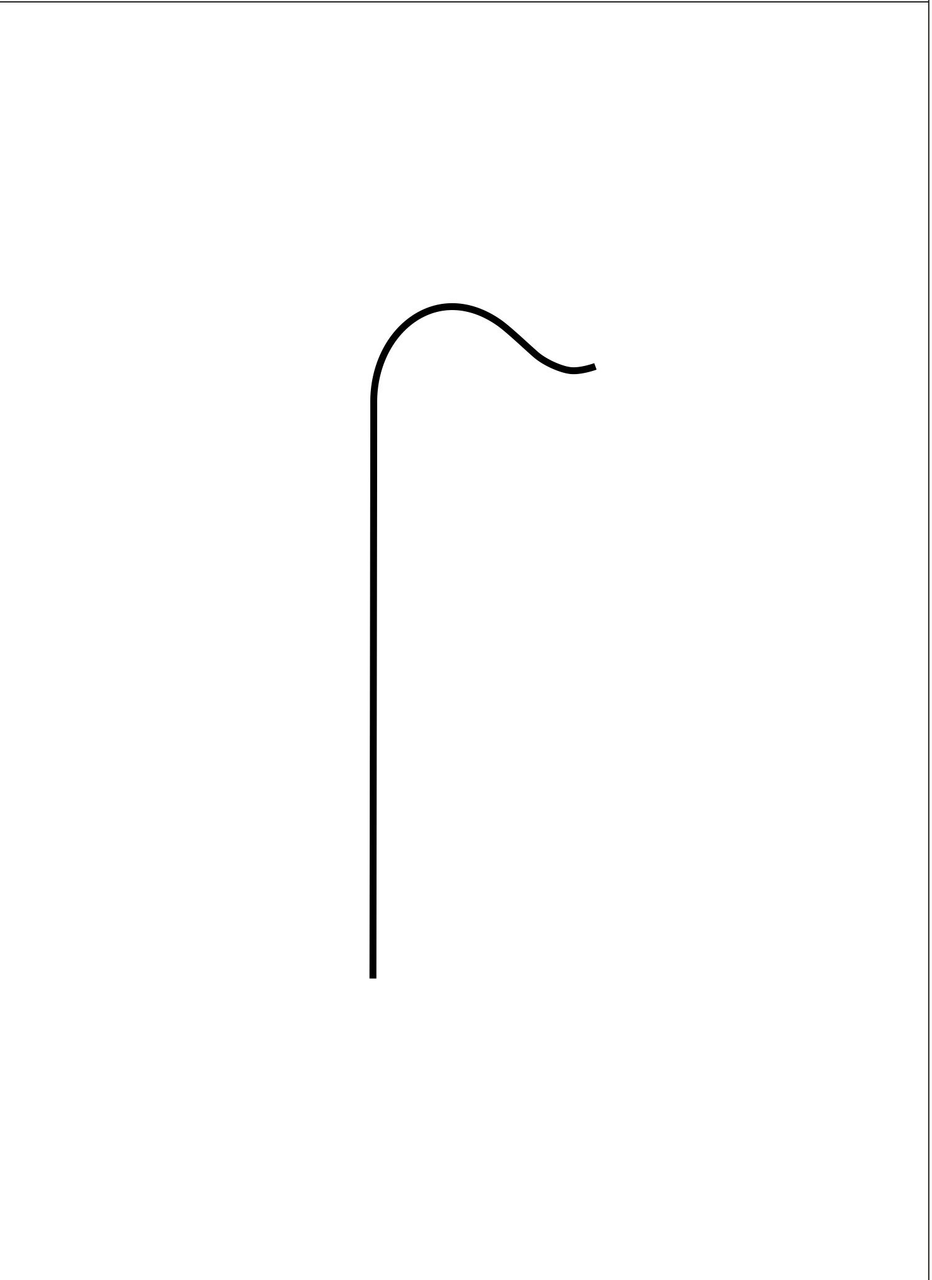

| RH*5AL2000M |
|
Cardiology | Amplatz Left 2.0 | 5 | 1.70 | 1.20 | 100 | 0 |
| RH*5AL3000M |
|
Cardiology | Amplatz Left 3.0 | 5 | 1.70 | 1.20 | 100 | 0 |

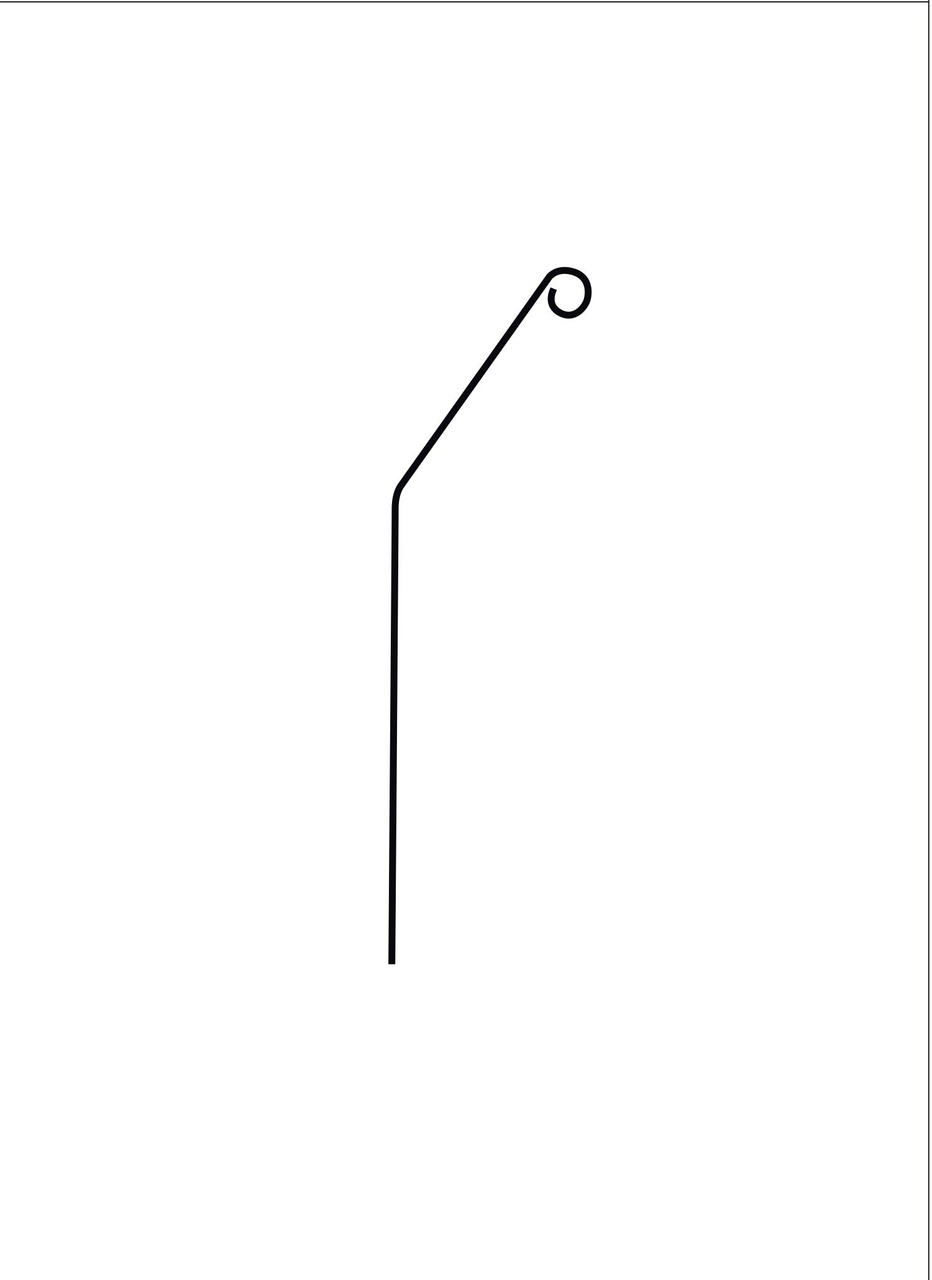

| RH*5AP4561M |
|
Cardiology | Angled Pigtail 145 | 5 | 1.70 | 1.20 | 110 | 6 |

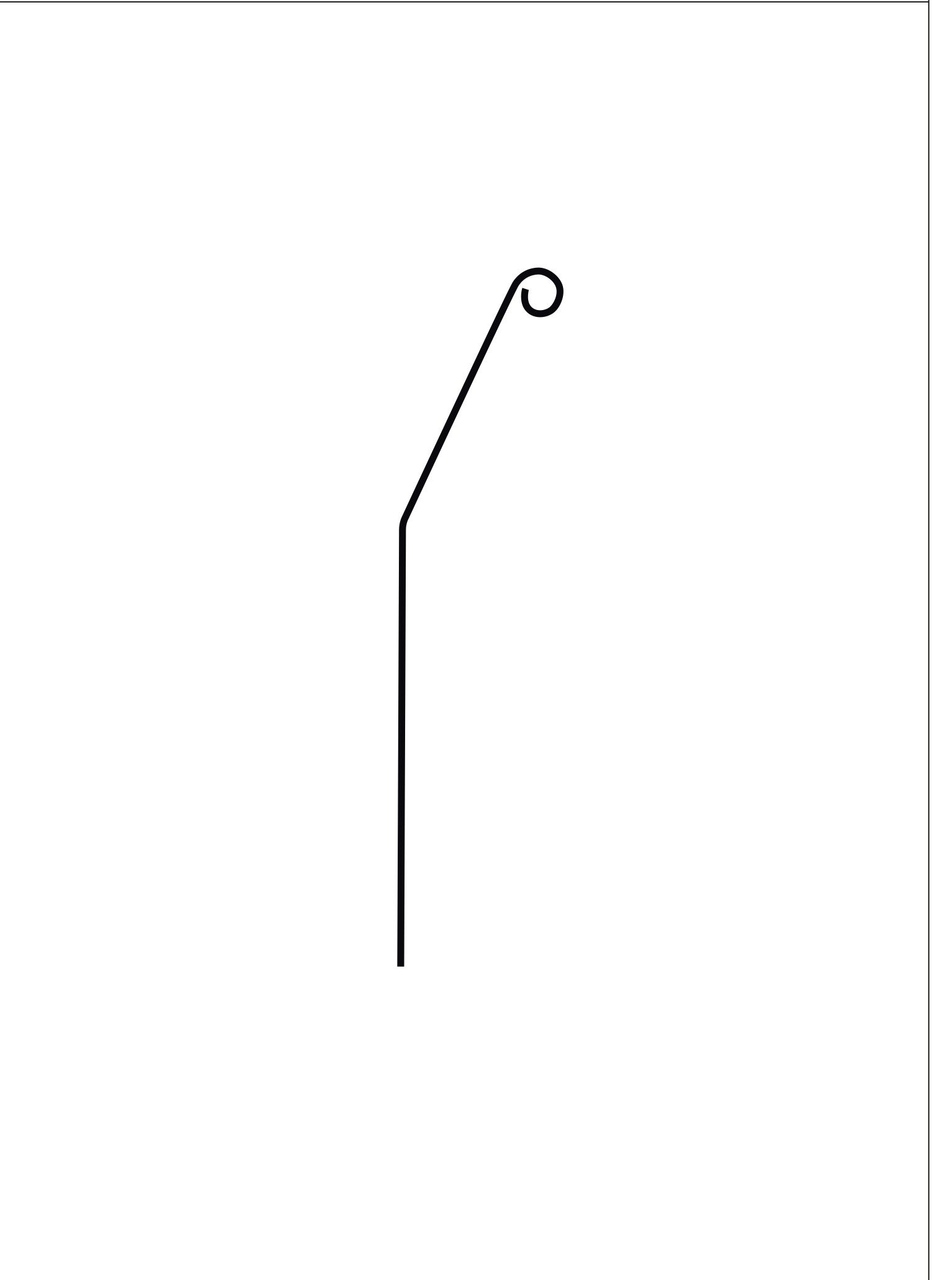

| RH*5AP5561M |
|
Cardiology | Angled Pigtail 155 | 5 | 1.70 | 1.20 | 110 | 6 |
| RH*5APR241M | |
Cardiology | Angled Pigtail 155 | 5 | 1.70 | 1.20 | 110 | 4 |

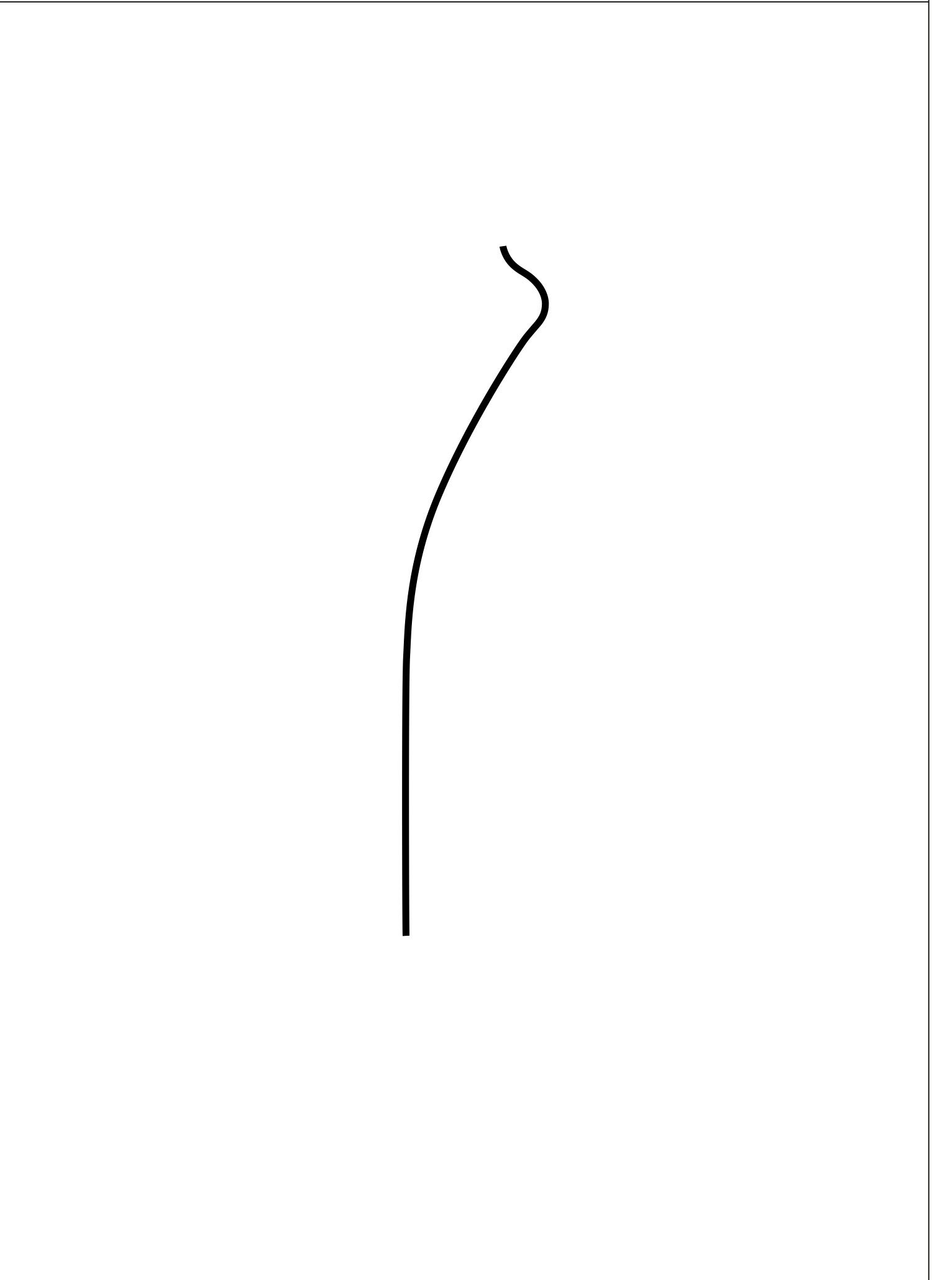

| RH*5AR1000M |
|
Cardiology | Amplatz Right 1.0 | 5 | 1.70 | 1.20 | 100 | 0 |

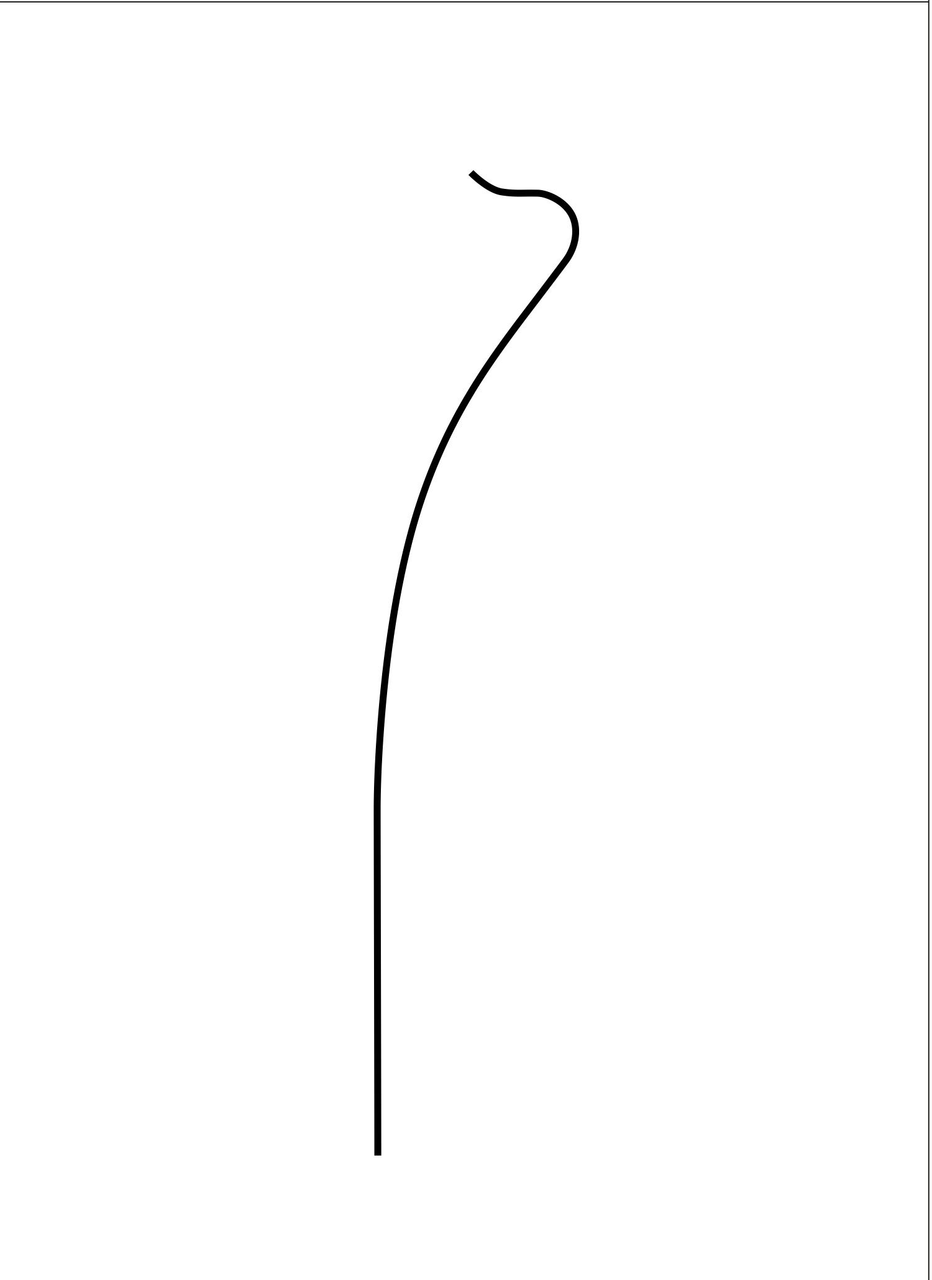

| RH*5AR2000M |
|
Cardiology | Amplatz Right 2.0 | 5 | 1.70 | 1.20 | 100 | 0 |

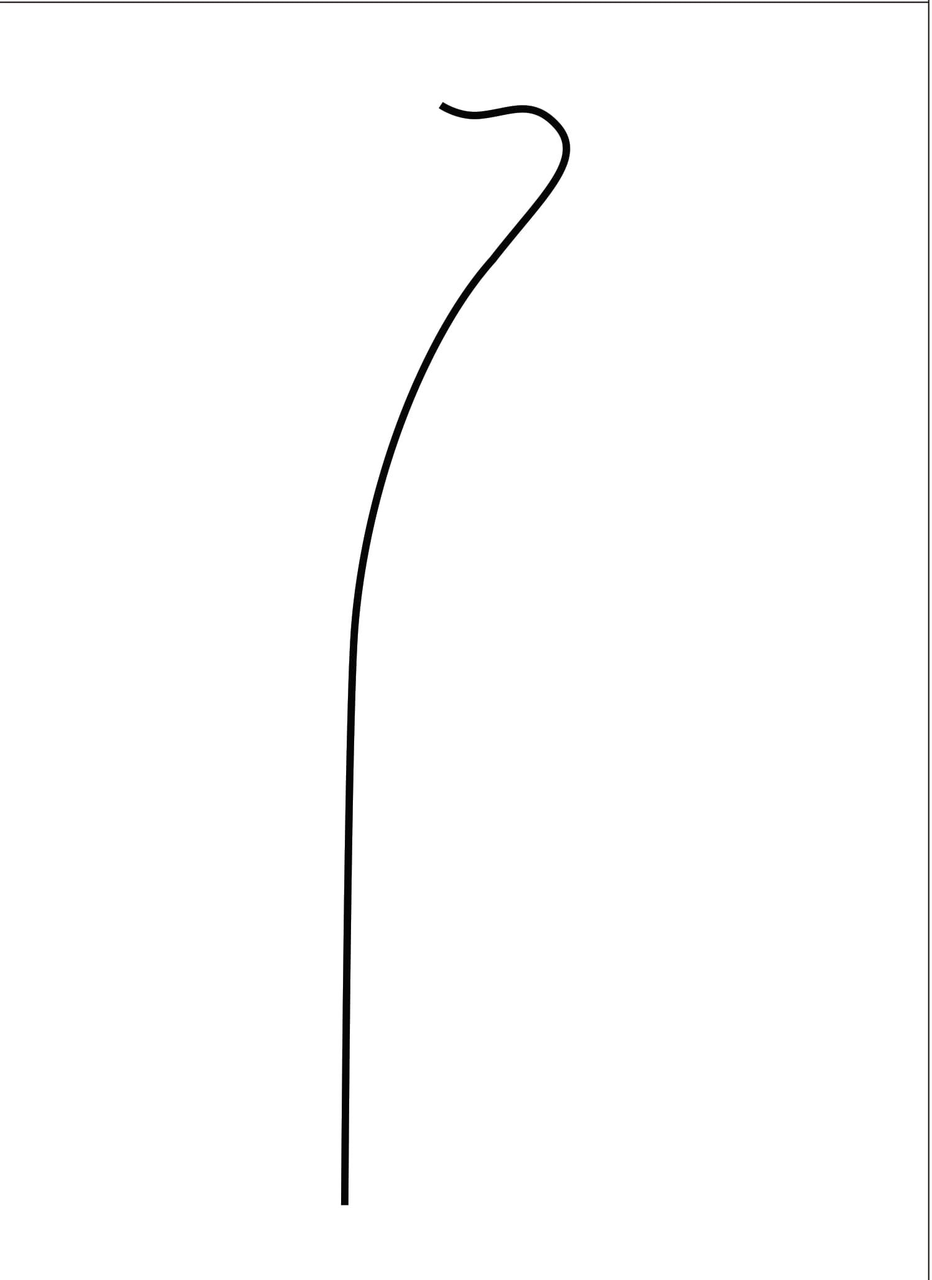

| RH*5AR3000M |
|
Cardiology | Amplatz Right 3.0 | 5 | 1.70 | 1.20 | 100 | 0 |
