RADIFOCUS™ Guide Wire M
Designed to direct a catheter to the desired anatomical location in the vascular system (peripheral, cerebral as well as coronary vasculature) during diagnostic or interventional procedures.
Overview
Designed to direct a catheter to the desired anatomical location in the vascular system (peripheral, cerebral as well as coronary vasculature) during diagnostic or interventional procedures.
Product Details
Design Structure
Design Structure - 2
Shaft
Features and Benefits
Hydrophilic coating (Mcoat™)
・High lubricity with less friction.
・Smooth/rapid navigation.
・Enhanced trackability through tortuous anatomy.
・May minimize risk of vasospasm.
Polyurethane jacket with tungsten
・Good visibility of entire wire.
・Smooth surface for hydrophilic coating.
・Ensures non-traumatic insertion.
Super elastic nitinol core
・High durability with kink resistance.
・Excellent tip shape memory.
・Single piece construction for 1:1 torque control.
Gently tapered tip
・Flexibility for easy artery navigation.
・Easy to select target vessel.
・Decreased possibility of vessel trauma.
General Specifications
| Item | Detail | |
| Core material | Nitinol | |
| Radiopaque jacket | Polyurethane layer containing tungsten | |
| Hydrophilic coating | Mcoat™ | |
| Units per box | 5 | |
| Shelf life | 24 months | |
| Guidewire diameter | Standard Type | 0.018" (0.46 mm) / 0.025" (0.64 mm) / 0.032" (0.81 mm) / 0.035" (0.89 mm) / 0.038" (0.97 mm) |
| Stiff Type | 0.020" (0.51 mm) / 0.025" (0.64 mm) / 0.035" (0.89 mm) / 0.038" (0.97 mm) | |
| Guidewire length | Standard Type | 80 cm / 120 cm / 150 cm / 180 cm / 220 cm / 260 cm/ 300 cm / 400 cm / 450 cm |
| Stiff Type | 80 cm / 150 cm / 180 cm / 260 cm / 300 cm / 450 cm | |
| Distal flexible length | Standard Type | 1 cm / 3 cm / 5 cm / 8 cm |
| Stiff Type | 3 cm | |
| Distal curve | Standard Type | Straight / Angled / 1.5 mm J shape / 3 mm J shape |
| Stiff Type | Straight / Angled | |
Item Specifications
| Formulation No./ Model No. | Shape Image | Tip shape | Flexible type | Flexible tip length (cm) | Distal outer diameter (inch) | Length (cm) |
|---|---|---|---|---|---|---|
| RF*PA25183M |
|
Angled | Stiff | 3 | 0.025 | 180 |
| RF*PA25263M |
|
Angled | Stiff | 3 | 0.025 | 260 |
| RF*PA32183M |
|
Angled | Stiff | 3 | 0.032 | 180 |
| RF*PA32263M |
|
Angled | Stiff | 3 | 0.032 | 260 |
| RF*PA35083M |
|
Angled | Stiff | 3 | 0.035 | 80 |
| RF*PA35153M |
|
Angled | Stiff | 3 | 0.035 | 150 |
| RF*PA35183M |
|
Angled | Stiff | 3 | 0.035 | 180 |
| RF*PA35263M |
|
Angled | Stiff | 3 | 0.035 | 260 |

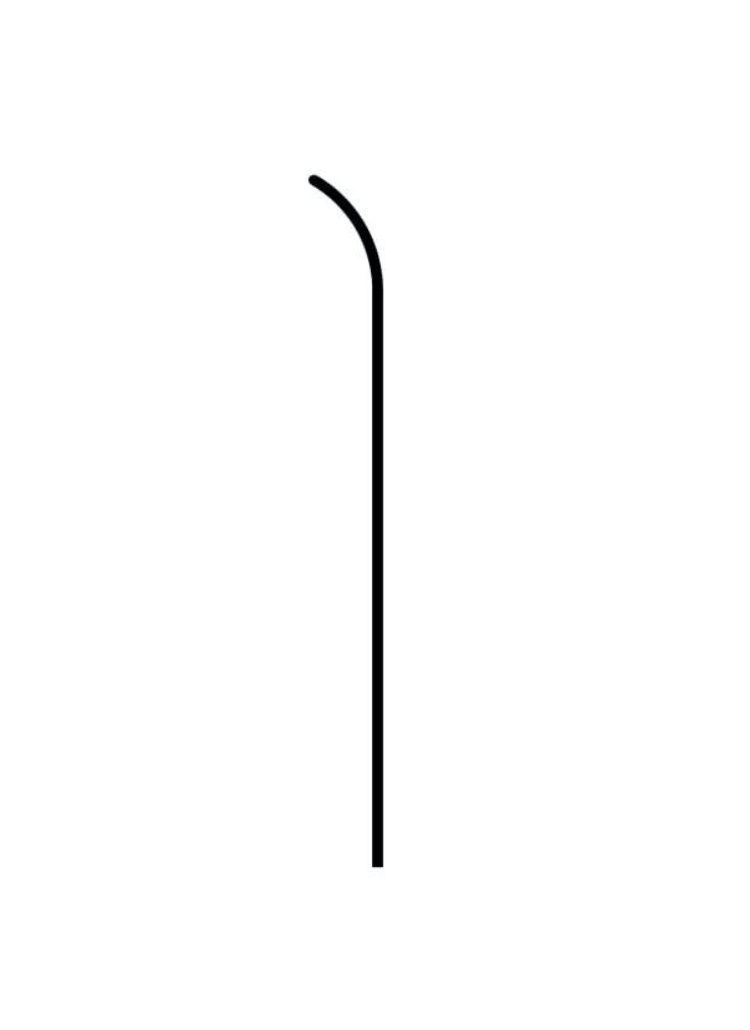

| RF*PA35303M |
|
Angled | Stiff | 3 | 0.035 | 300 |
| RF*PA38153M |
|
Angled | Stiff | 3 | 0.038 | 150 |
