Angiographic Catheters
RADIFOCUS™ Glidecath™
Hydrophilic Coated Catheter
- Navigate difficult vessel anatomy with smooth tracking facilitated by Mcoat™.
- Better kink resistance to achieve ideal flow rates for diagnostic imaging.
Please contact your local representative for product details and catalogs.
Overview
A hydrophilically coated, angiographic catheter providing the vessel selectivity and navigation required for a wide variety of diagnostic or interventional procedures
- Navigate difficult vessel anatomy with smooth tracking facilitated by Mcoat™.
- Better kink resistance to achieve ideal flow rates for diagnostic imaging.
Product Details
Single-Braided (5F)
Reach distal visceral vessels with best-in-class trackability and torquability.
Double-Braided (4F)
Access and cross challenging lesions with excellent trackability and torquability.
Item Specifications
Country Select
| Formulation No./ Model No. | Shape Image | Category | Tip shape/Tip figure | Outer diameter（Fr.） | Outer diameter (mm) | Inner diameter(mm) | Usable catheter length (cm) | Side holes |
|---|---|---|---|---|---|---|---|---|

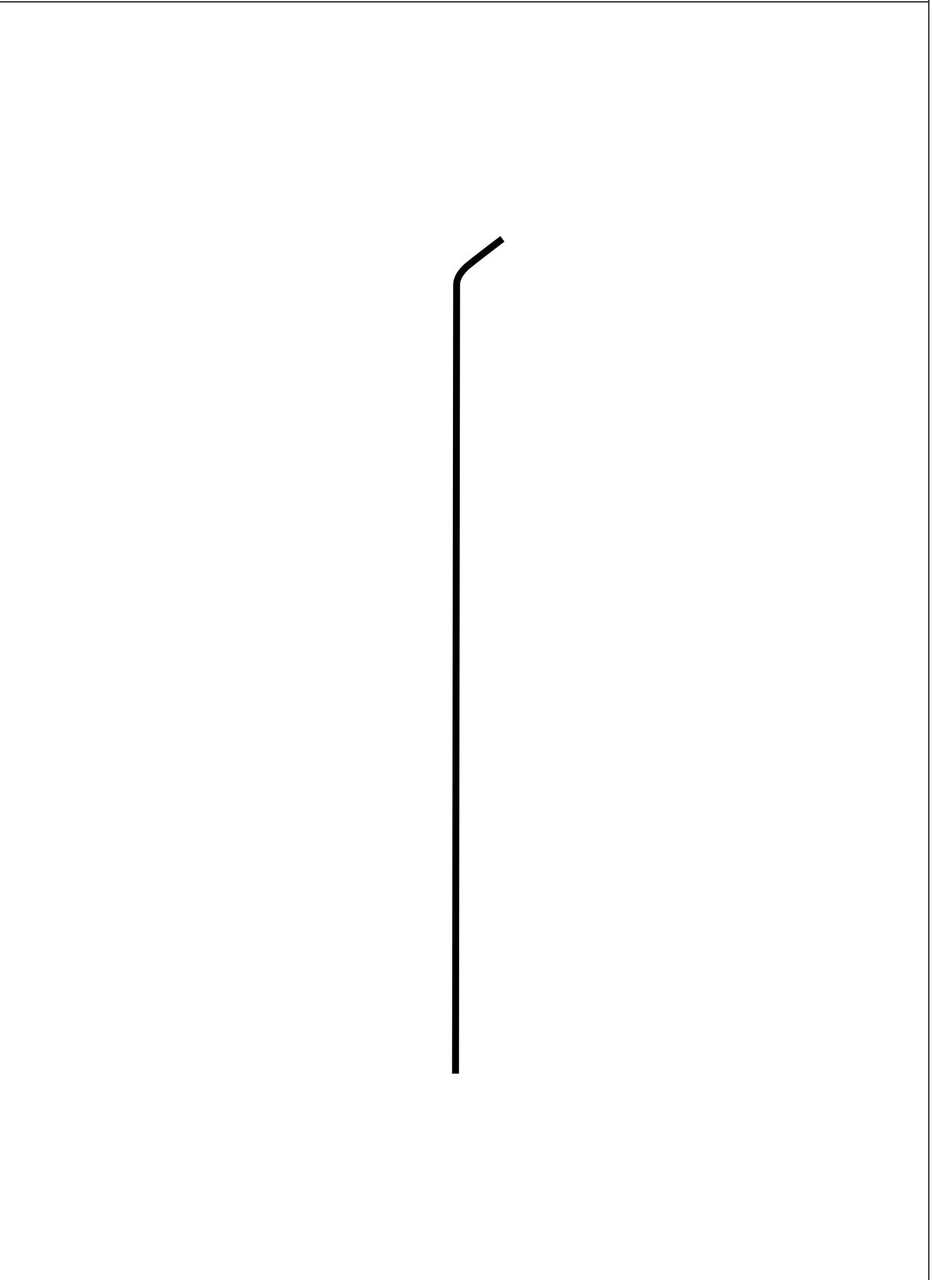

| RF*XL95110M |
|
Endovascular | Angled Taper | 5 | 1.70 | 1.10 | 100 | 0 |
| RF*XM75111M |
|
Endovascular | Straight | 5 | 1.70 | 1.10 | 110 | 0 |

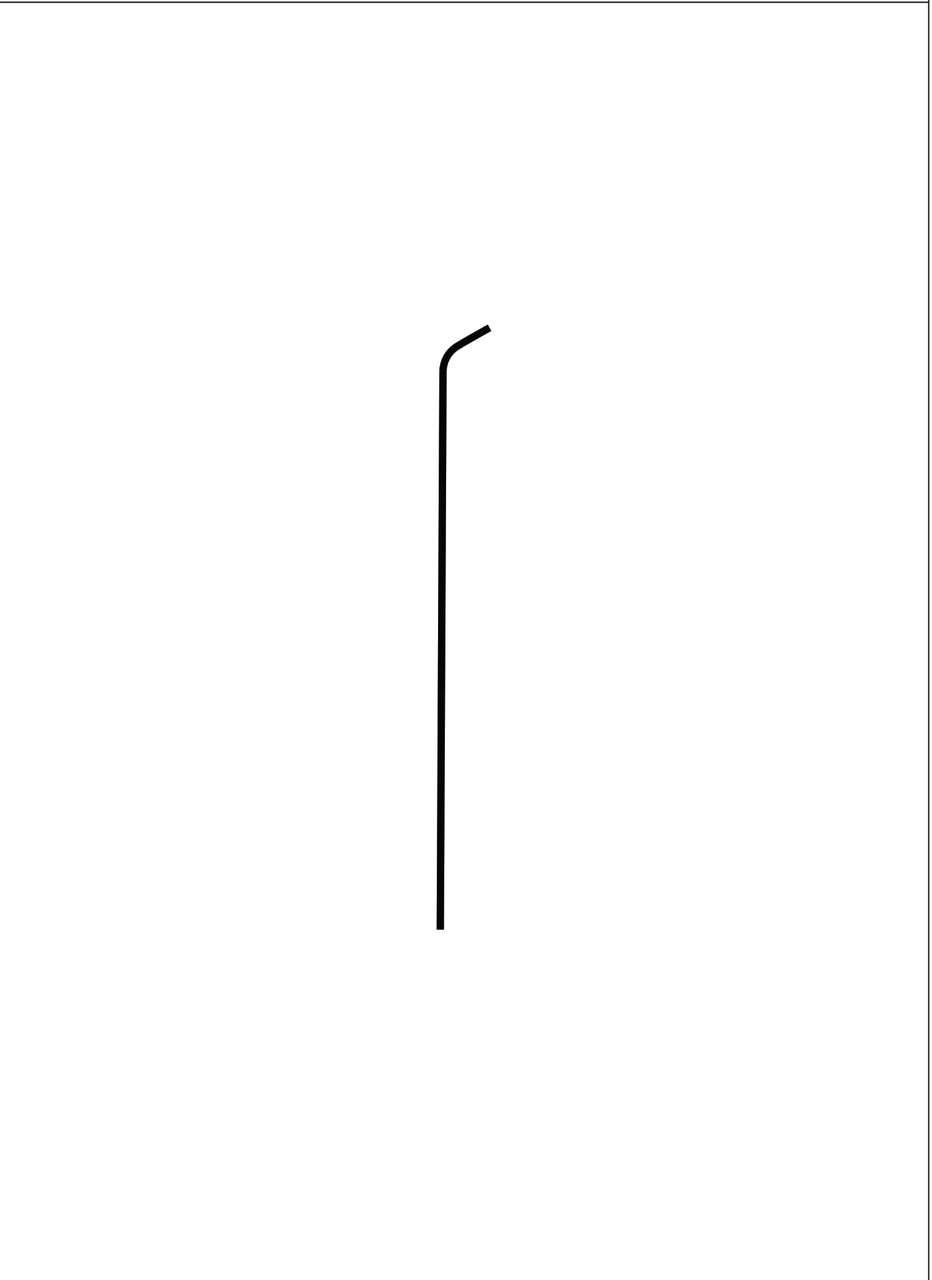

| RF*XV95111M |
|
Endovascular | Non-tapered Angle | 5 | 1.70 | 1.10 | 110 | 0 |
| RF*XW35110A |
|
Endovascular | Multipurpose | 5 | 1.70 | 1.10 | 100 | 0 |

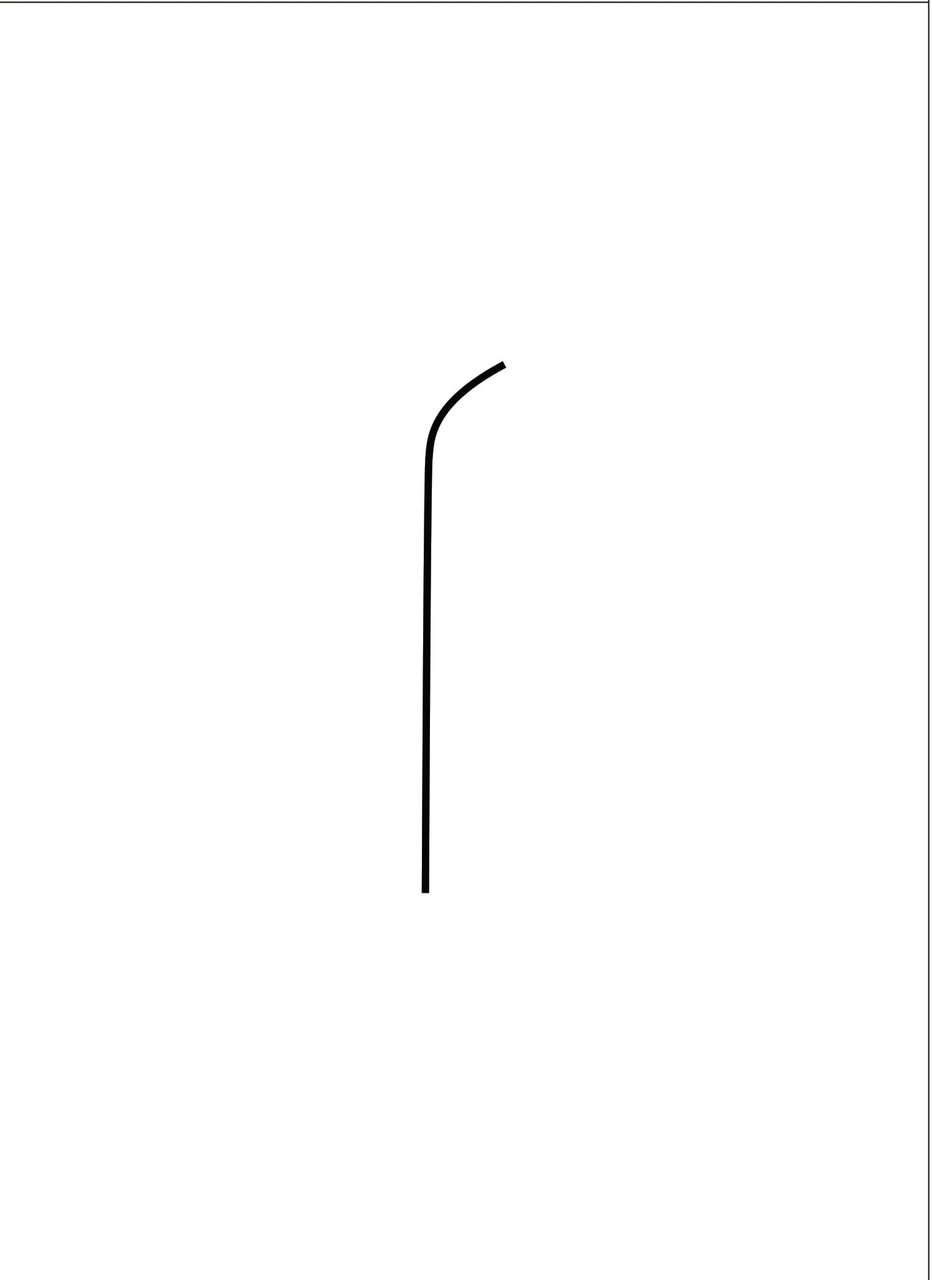

| RF*XWD5110A |
|
Endovascular | COE 2 | 5 | 1.70 | 1.10 | 100 | 0 |

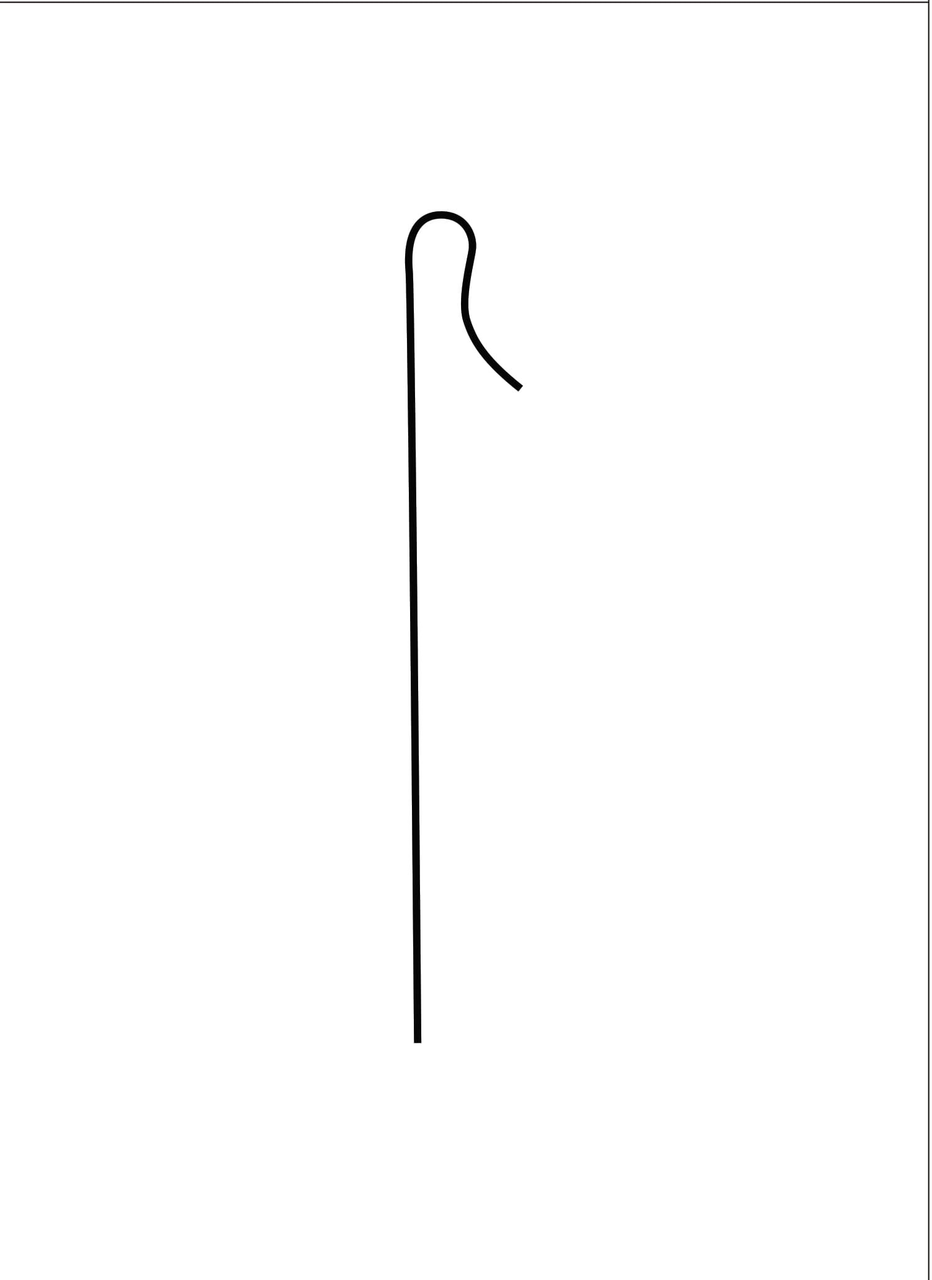

| RF*YA15110M |
|
Endovascular | Simmons 1 | 5 | 1.70 | 1.10 | 100 | 0 |

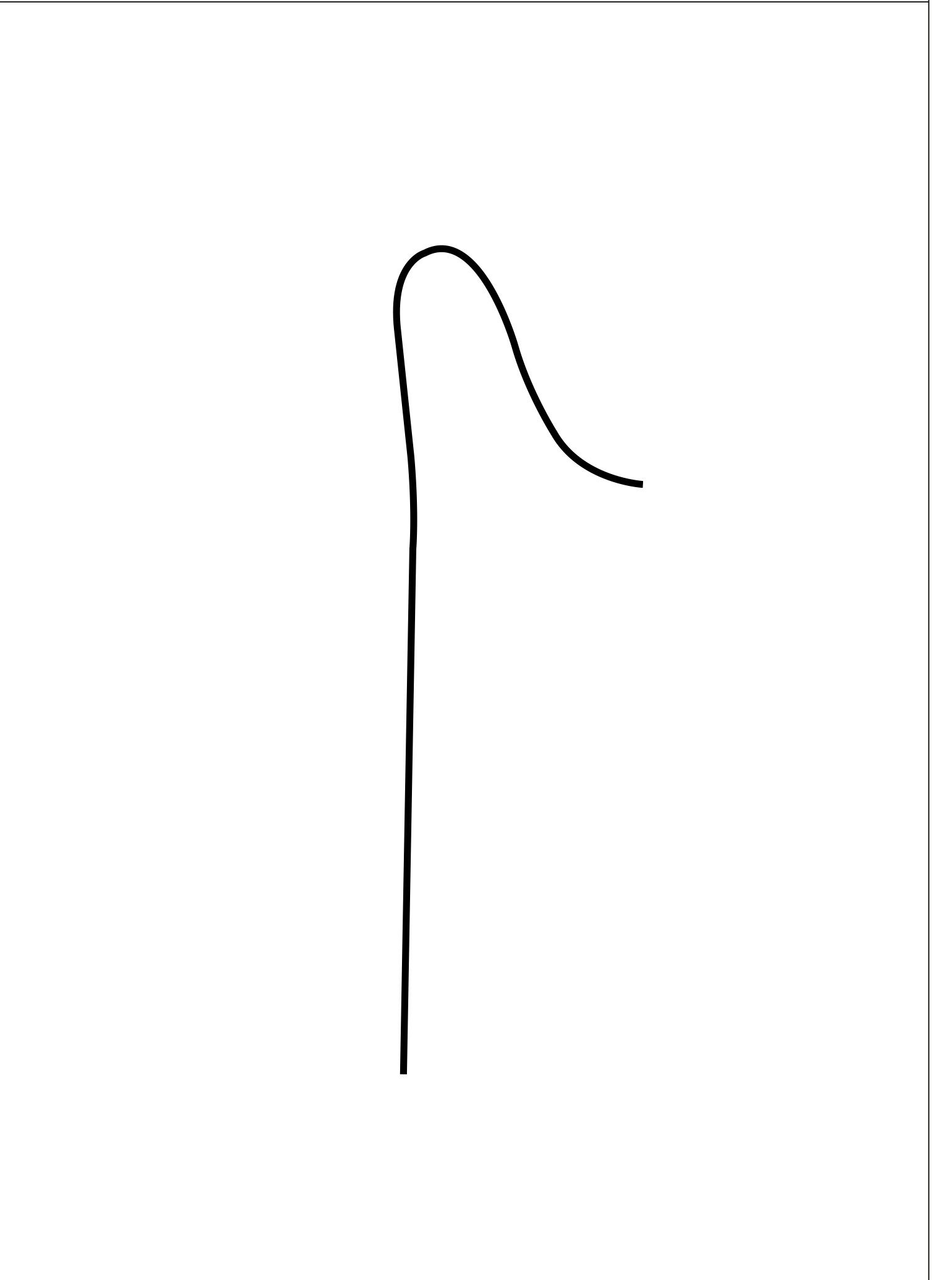

| RF*YA2510GA |
|
Endovascular | Simmons 2 | 5 | 1.70 | 1.10 | 65 | 0 |
| RF*YA25110A |
|
Endovascular | Simmons 2 | 5 | 1.70 | 1.10 | 100 | 0 |

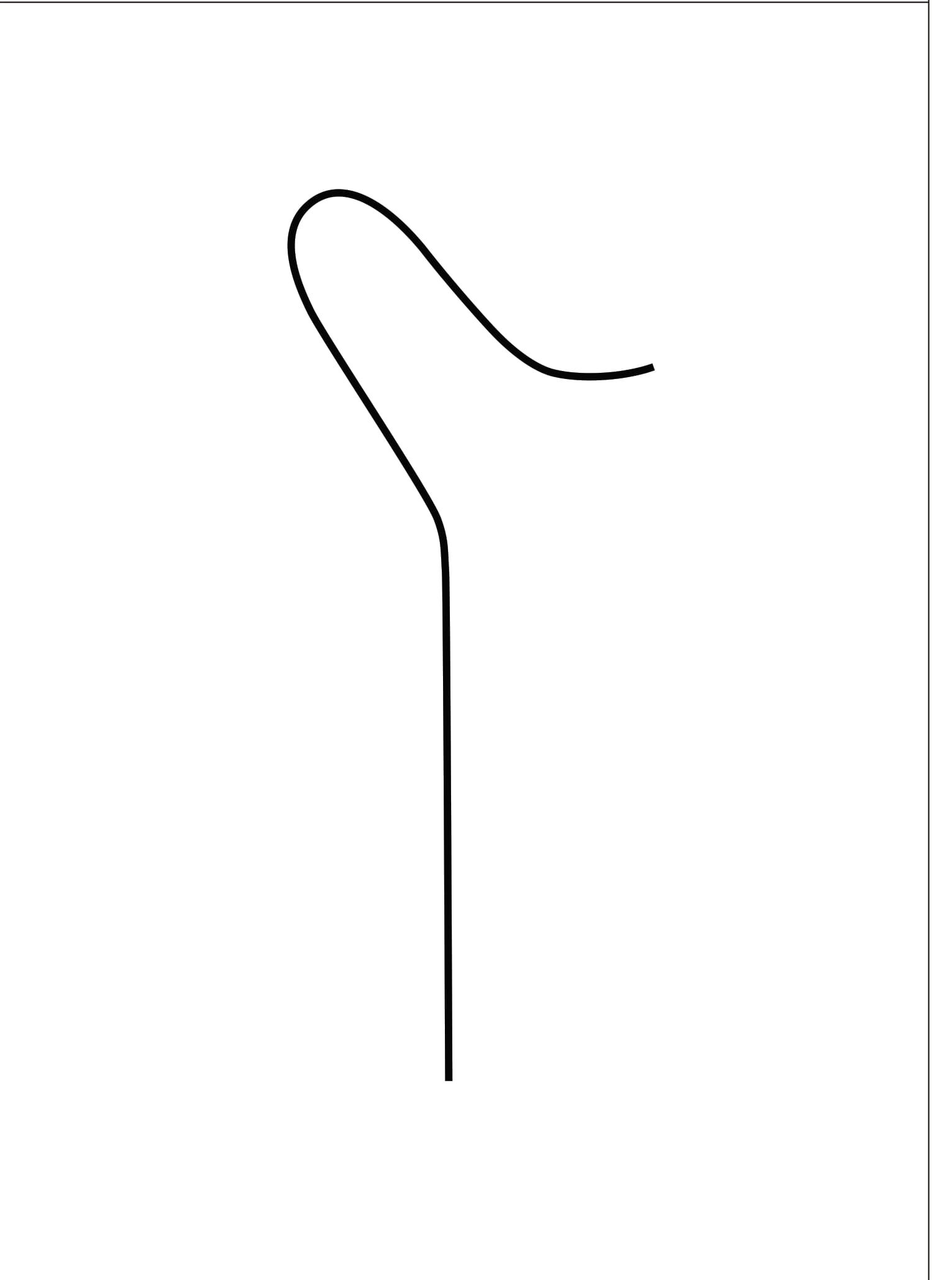

| RF*YA35110A |
|
Endovascular | Simmons 3 | 5 | 1.70 | 1.10 | 100 | 0 |
| RF*YB15110A |
|
Endovascular | Headhunter 1 | 5 | 1.70 | 1.10 | 100 | 0 |
