Angiographic Catheters
RADIFOCUS™ Angiographic Catheter
Angiographic Catheter
- Smooth navigation thanks to the polyamide surface, rounded tip and one-piece body structure.
- Soft and atraumatic catheter with good torque control due to its internal metallic mesh braid.
- Smooth, radiopaque surface to prevent thrombus formation.
- High pressure resistance (up to 1,000 psi/6.895 kPa)
- Various tip shapes available.
Please contact your local representative for product details and catalogs.
Overview
A 5Fr angiographic catheter intended for use in angiographic procedures
- Smooth navigation thanks to the polyamide surface, rounded tip and one-piece body structure.
- Soft and atraumatic catheter with good torque control due to its internal metallic mesh braid.
- Smooth, radiopaque surface to prevent thrombus formation.
- High pressure resistance (up to 1,000 psi/6.895 kPa)
- Various tip shapes available.
Product Details
Item Specifications
Country Select
| Formulation No./ Model No. | Shape Image | Category | Tip shape/Tip figure | Outer diameter（Fr.） | Outer diameter (mm) | Inner diameter(mm) | Usable catheter length (cm) | Side holes |
|---|---|---|---|---|---|---|---|---|
| RF*DA7500GM |
|
Endovascular | Modified Renal | 5 | 1.70 | 1.10 | 65 | 0 |
| RF*DB25008M |
|
Endovascular | Cobra 2 | 5 | 1.70 | 1.10 | 80 | 2 |

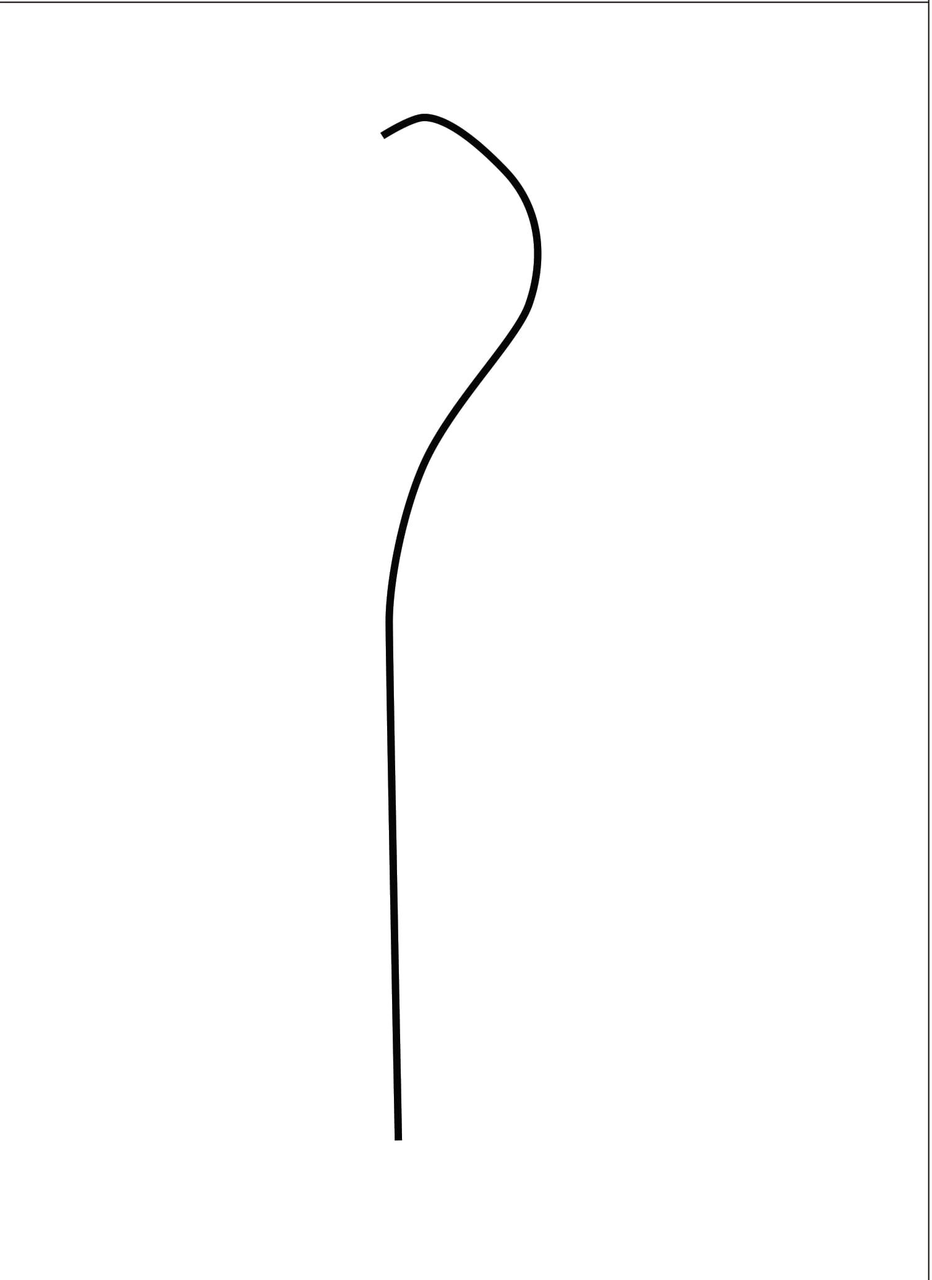

| RF*DB2500GM |
|
Endovascular | Cobra 2 | 5 | 1.70 | 1.10 | 65 | 2 |
| RF*DB65008M |
|
Endovascular | Cobra 3 | 5 | 1.70 | 1.10 | 80 | 0 |

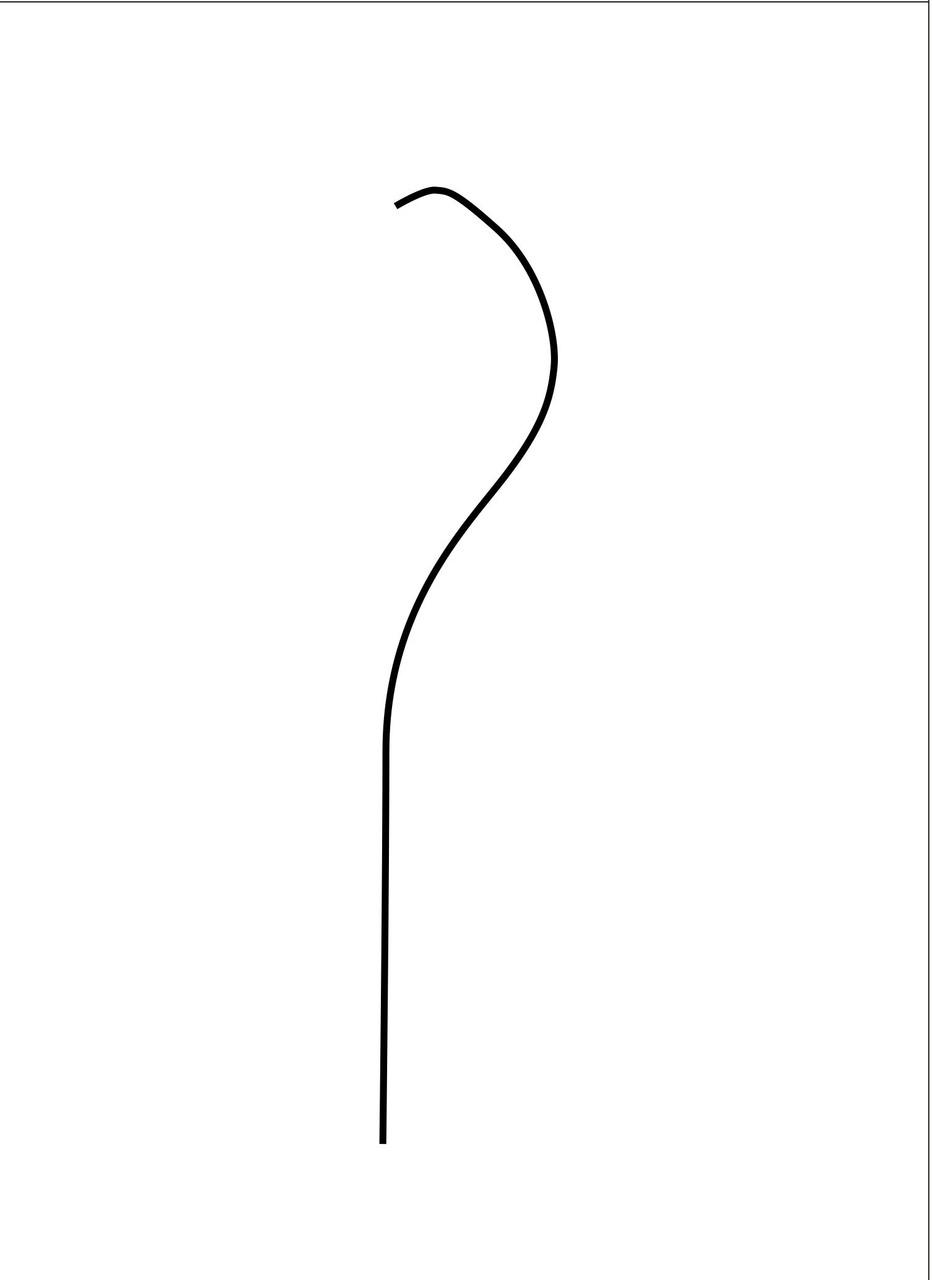

| RF*DB6500GM |
|
Endovascular | Cobra 3 | 5 | 1.70 | 1.10 | 65 | 0 |

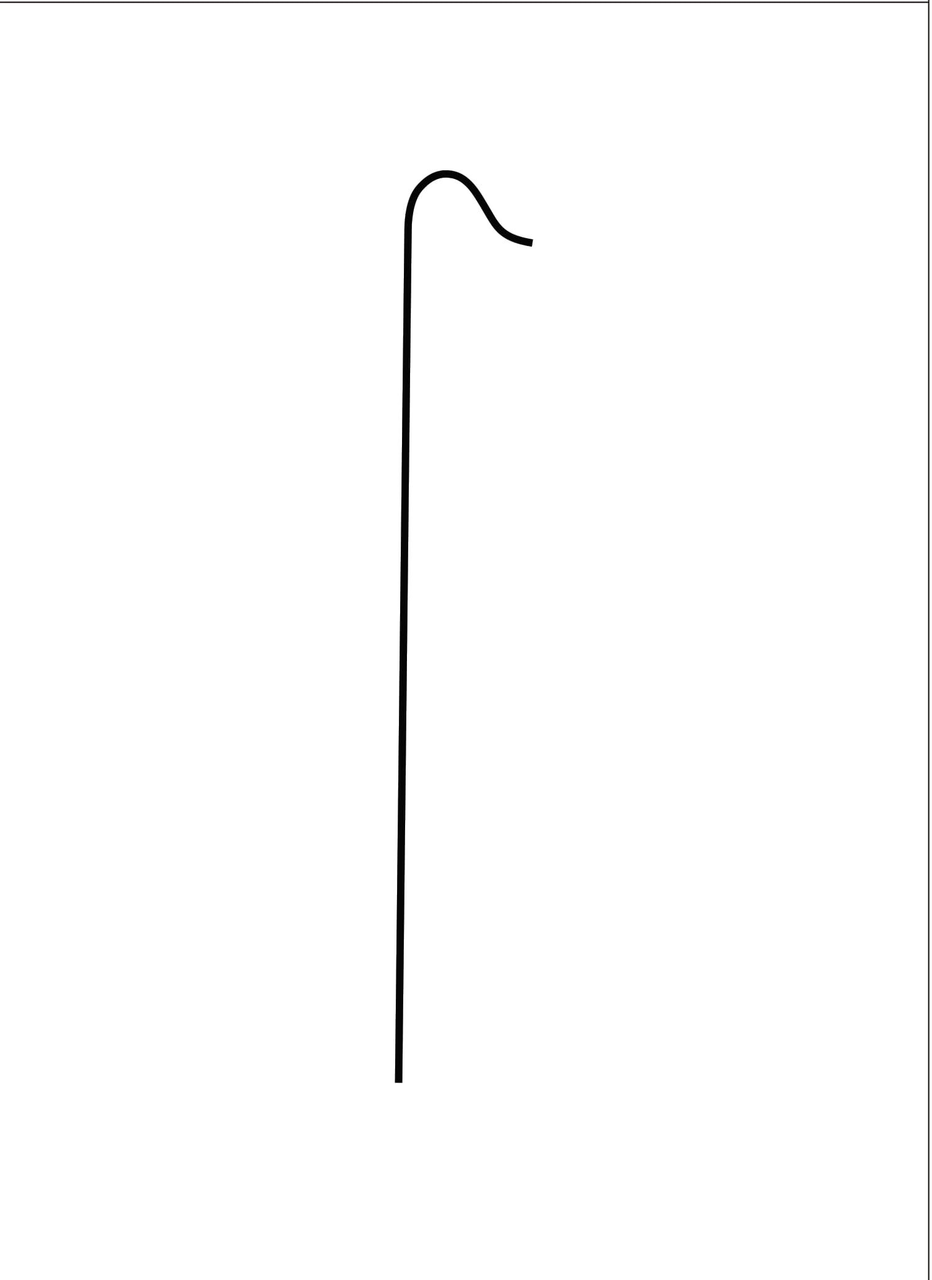

| RF*DC45008M |
|
Endovascular | Shepherd Hook | 5 | 1.70 | 1.10 | 80 | 0 |

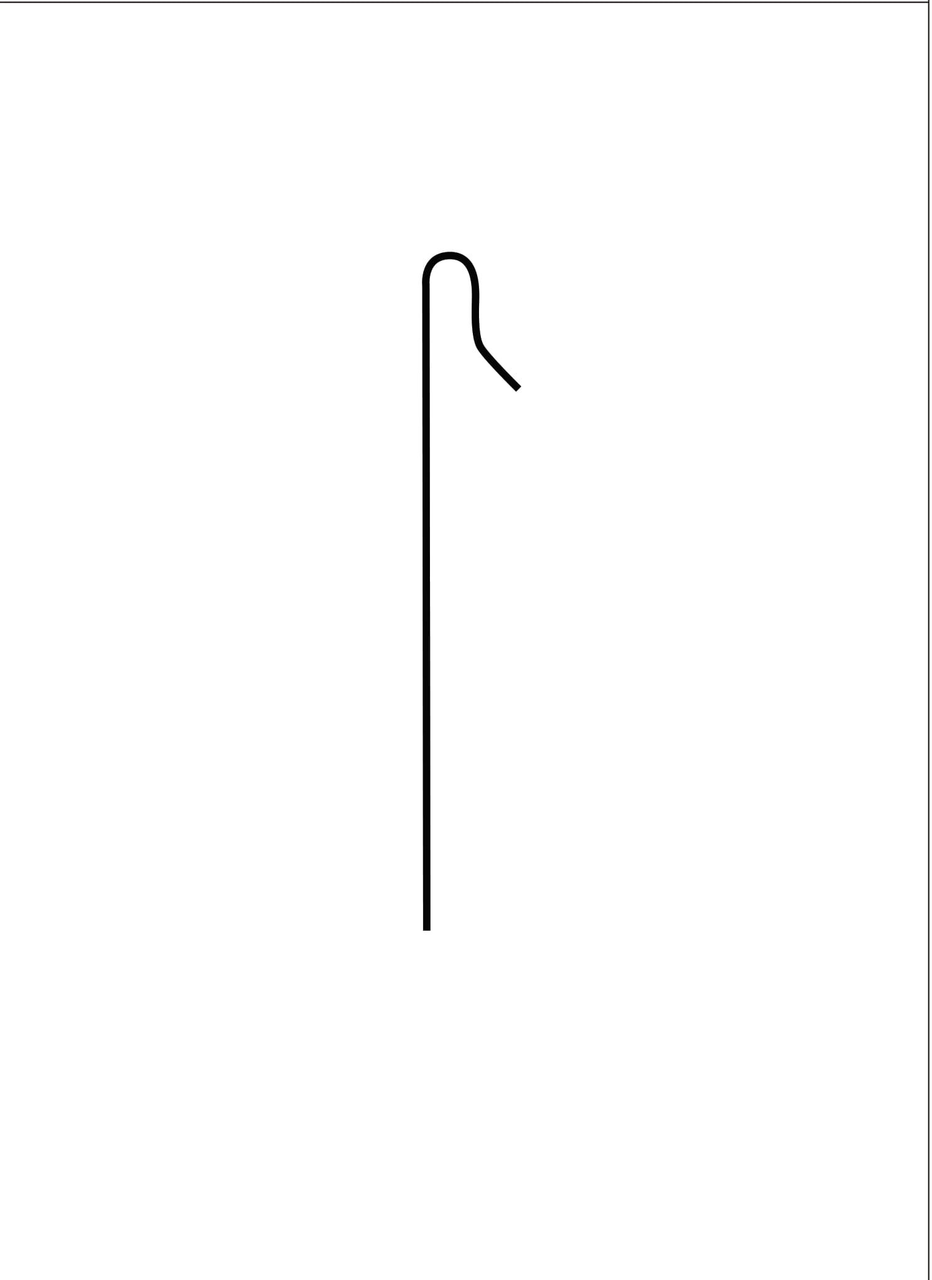

| RF*DE45008M |
|
Endovascular | Sidewinder 1 | 5 | 1.70 | 1.10 | 80 | 0 |

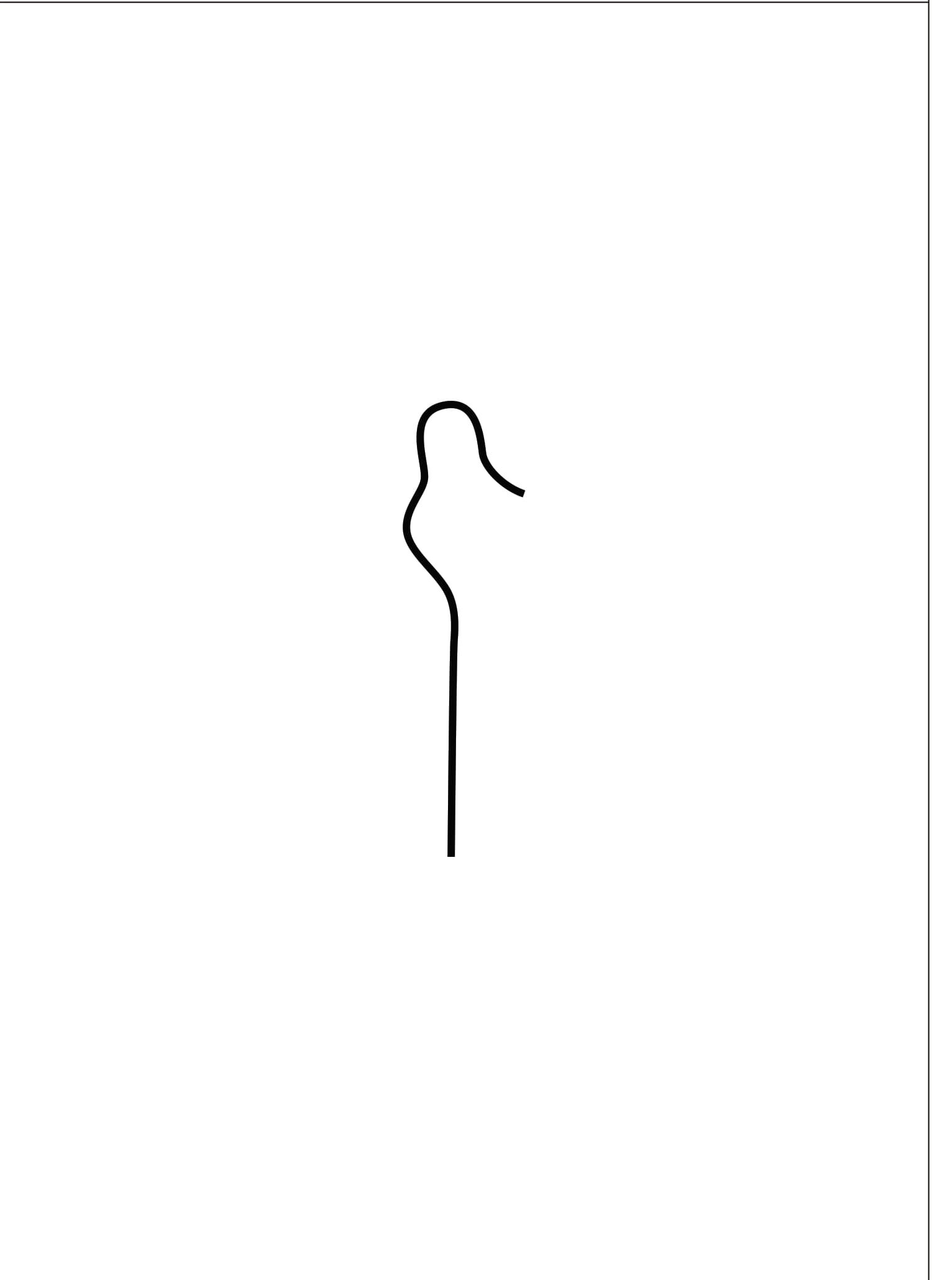

| RF*DF25008M |
|
Endovascular | Mikaelsson | 5 | 1.70 | 1.10 | 80 | 0 |

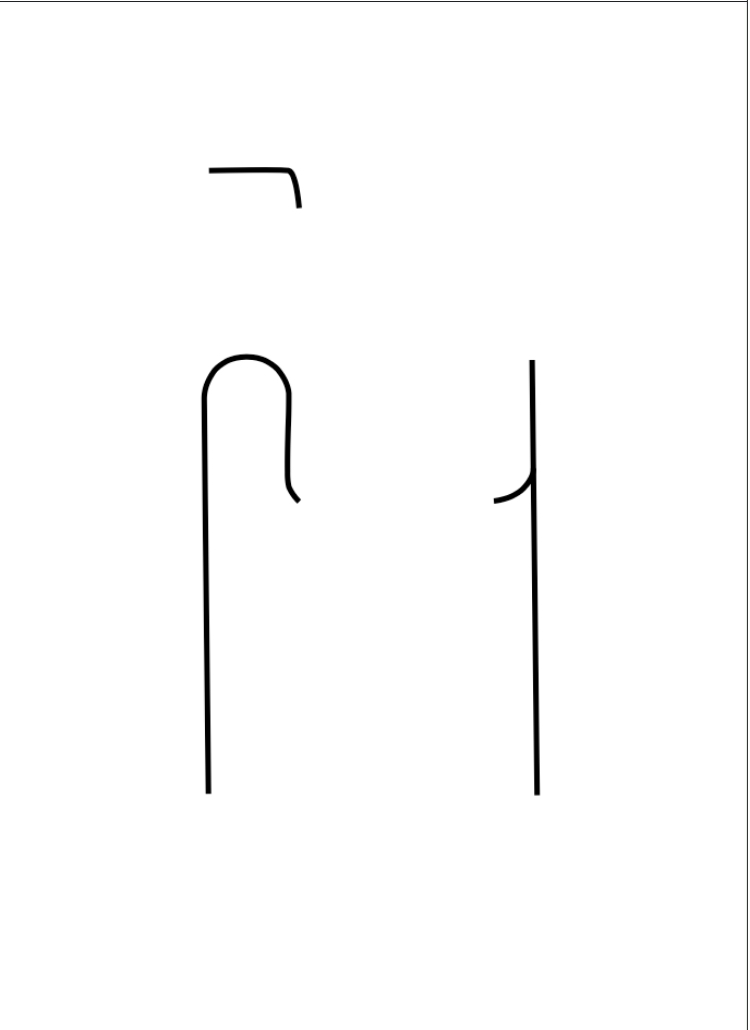

| RF*DG3500GM |
|
Endovascular | RH | 5 | 1.70 | 1.10 | 65 | 0 |

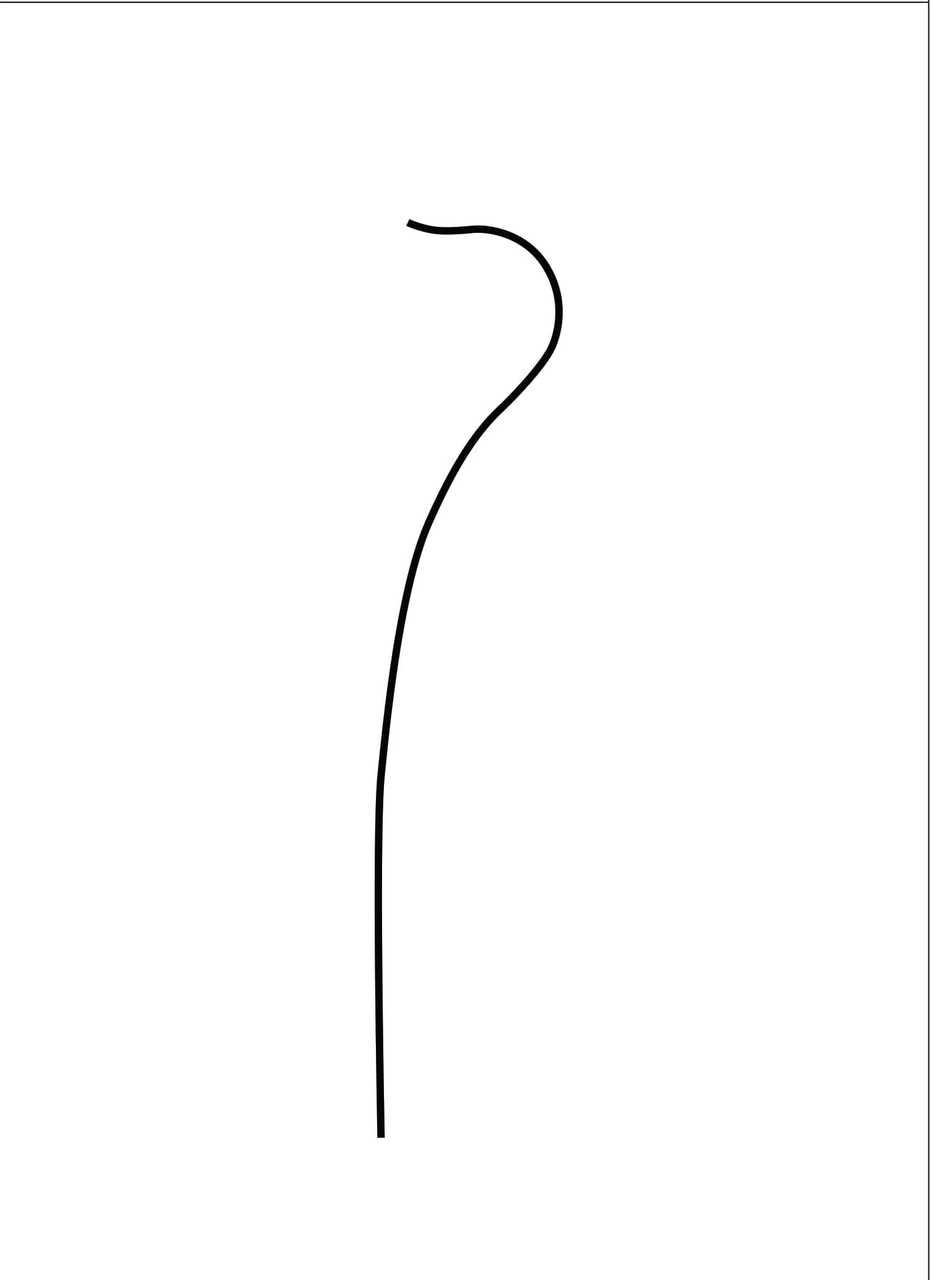

| RF*EB25010M |
|
Endovascular | Headhunter 3 | 5 | 1.70 | 1.10 | 100 | 0 |
